AX-8 Series Motion CPU

The AX-8 Series is designed for high-end motion control, focusing on multi-axis, high precision, and high-efficiency motion control applications.

Features & Benefits

High-performance Intel x86 CPU enables compact design
Supports diverse protocols: EtherCAT, PROFINET (Slave), OPC UA (Server), EtherNet/IP, Modbus TCP/IP
Built-in low-voltage detection and data overwriting functions for PACs
Supports local inputs/outputs, encoder input
Up to 128 axes / 1 ms synchronous servo control
The DIADesigner-AX development software complies with the international standard IEC 61131-3
Supports the following programming languages specified in IEC 61131-3: Function Block Diagram (FBD), Ladder Diagram (LD), Structured Text (ST), and Sequential Function Chart (SFC)

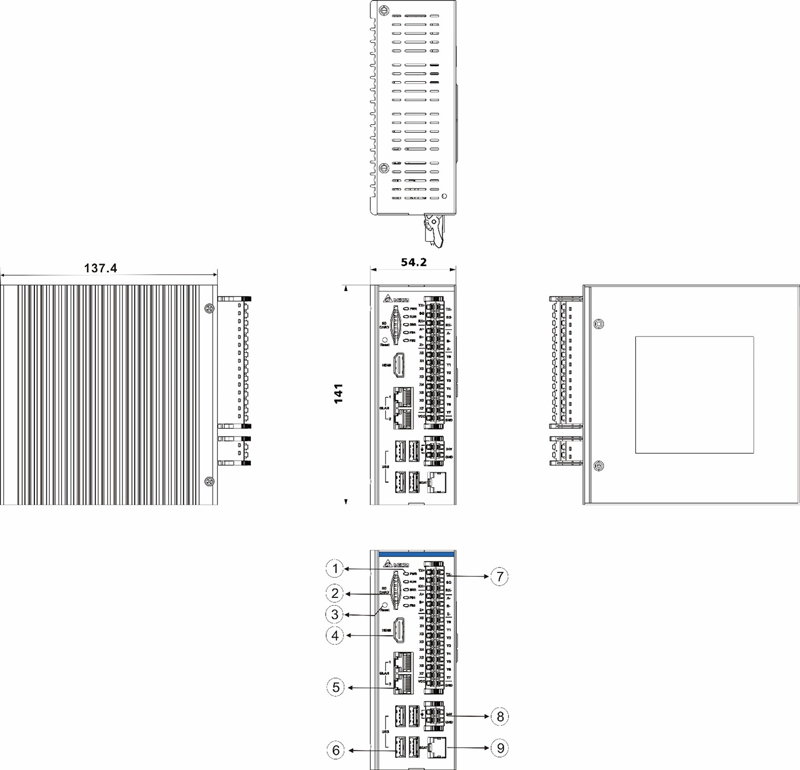

AX-8xxEP0xx1x (Unit: mm)

AX-8 Dimension

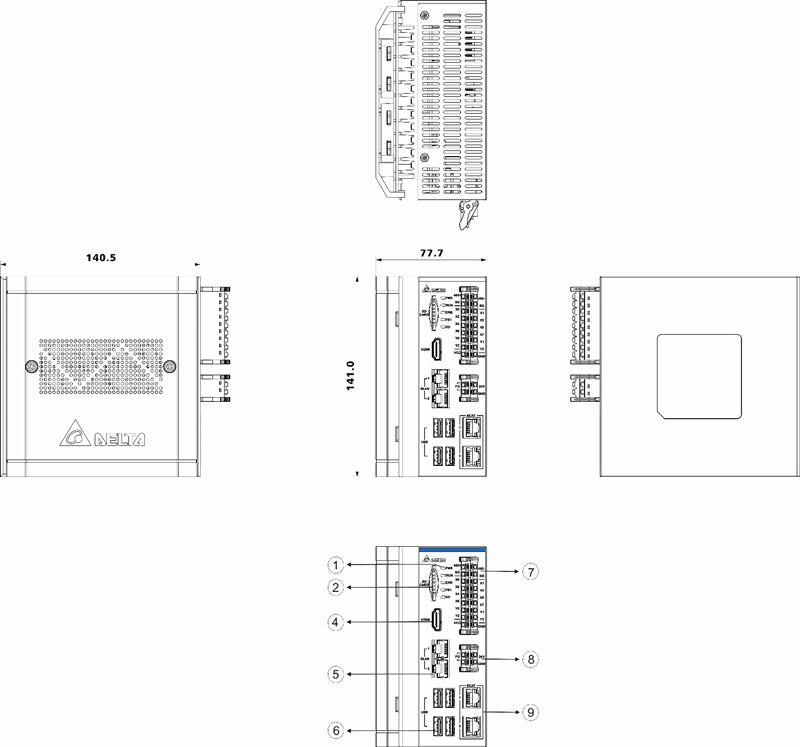

AX-8H1E30CD2T (Unit: mm)

AX-8 Dimension 2

Applications

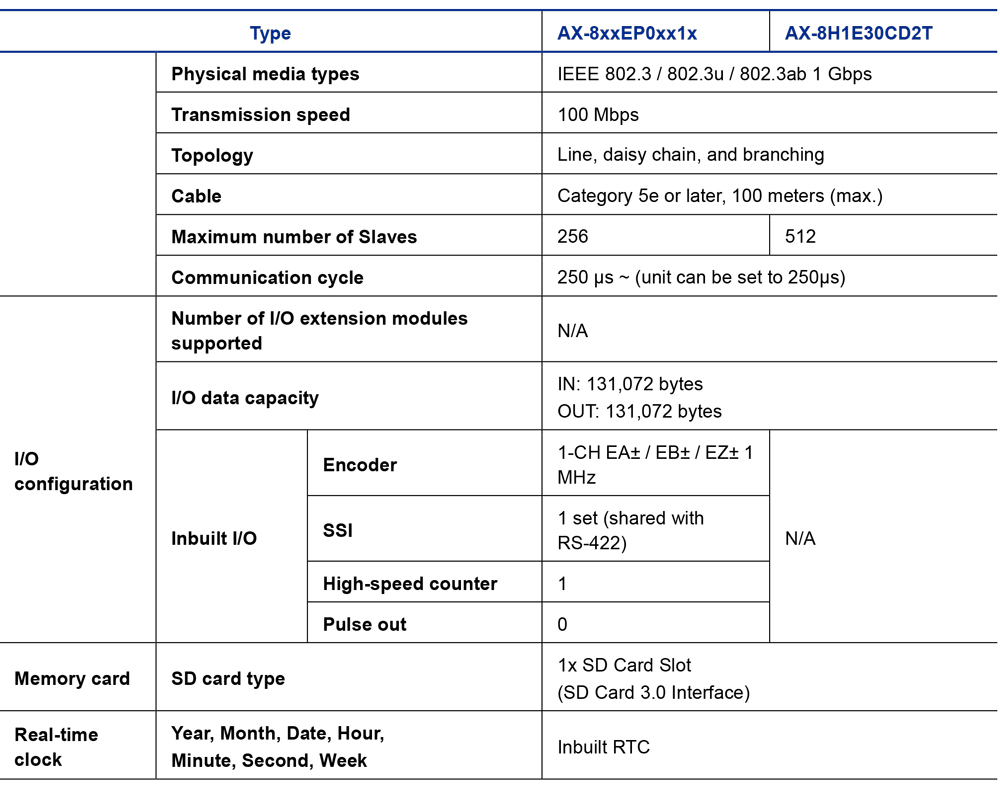

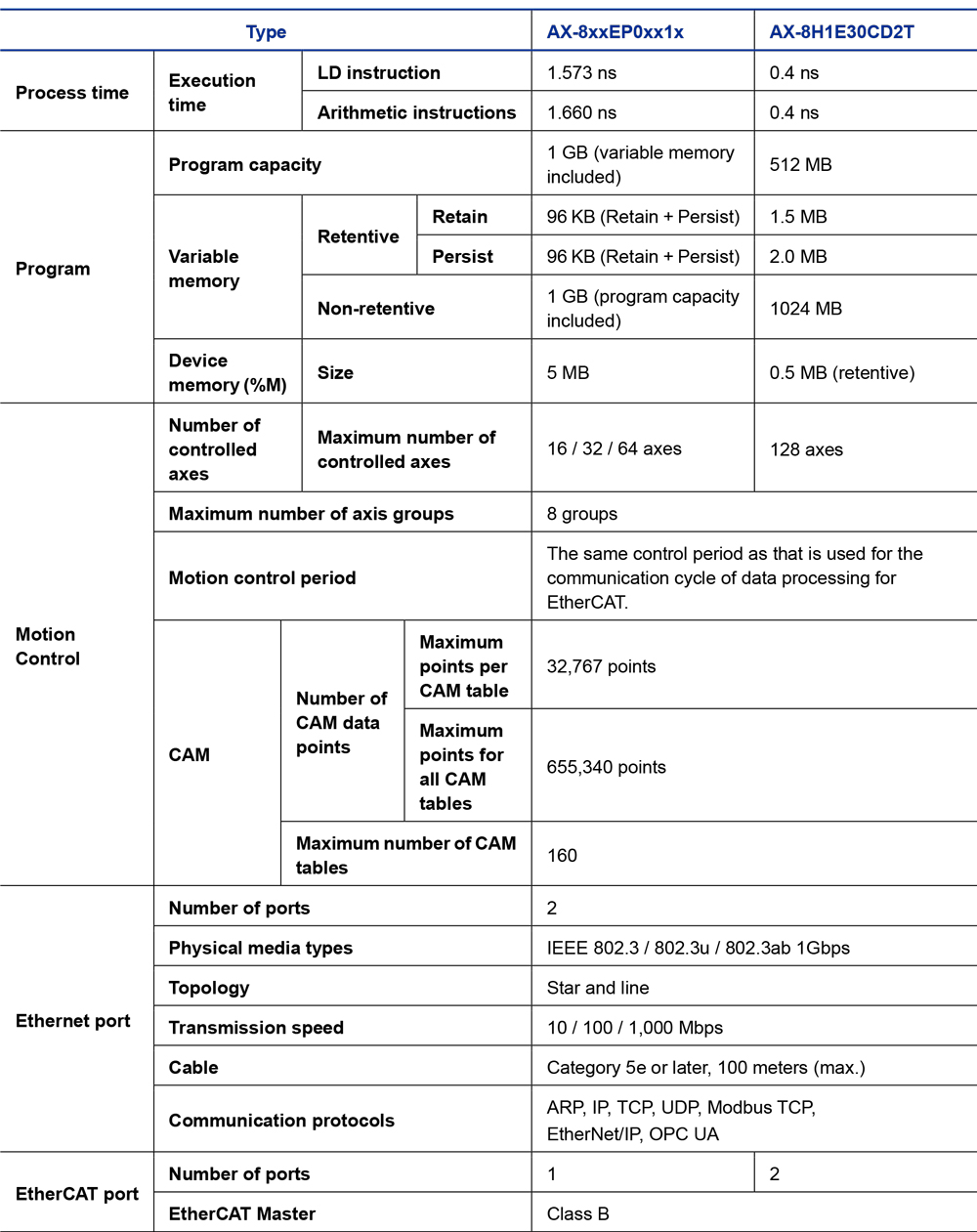

Specifications

Downloads
