The Delta Smart Screwdriving System provides a one-stop solution for screw-tightening processes. It integrates the key technologies of servo motors, torque detection, and software control with Delta’s manufacturing experience. The system meets the precision and quality requirements of a variety of scenarios.

System Features:

• Dual-tool operation with one controller
• Stores up to 500 sets of screw configurations and 500 parameters
• Production data can be uploaded to MES or saved locally
• Multiple control modes: Torque, angle, and seating point control
• Supports dual-tool alternation and synchronization for different applications
• Detects and analyzes quality issues, such as stripped and under-driven screws to continually optimize quality
• Applies corresponding parameters with a scanner to reduce human errors and waste and enhance yield rates

Product List

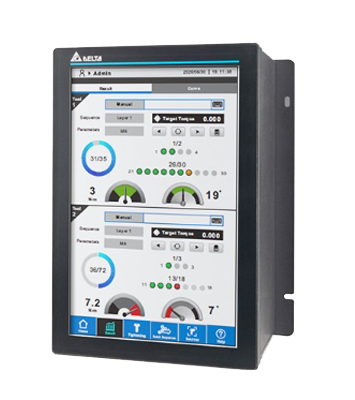

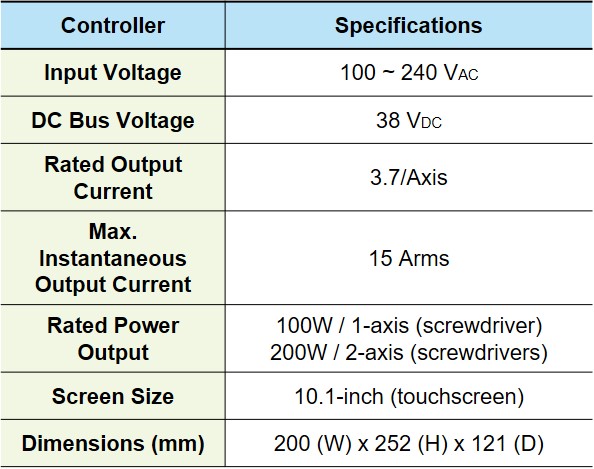

Smart Screwdriving Controller ASD-SD3

Dual-spindle control for higher efficiency Supports dual-tool alternation and synchronization 10.1-inch display to show information of both drivers for easier examination and operation Large memory capacity stores up to 200,000 results Applications Electronic product assembly Automotive electronics assembly

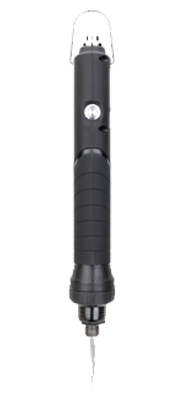

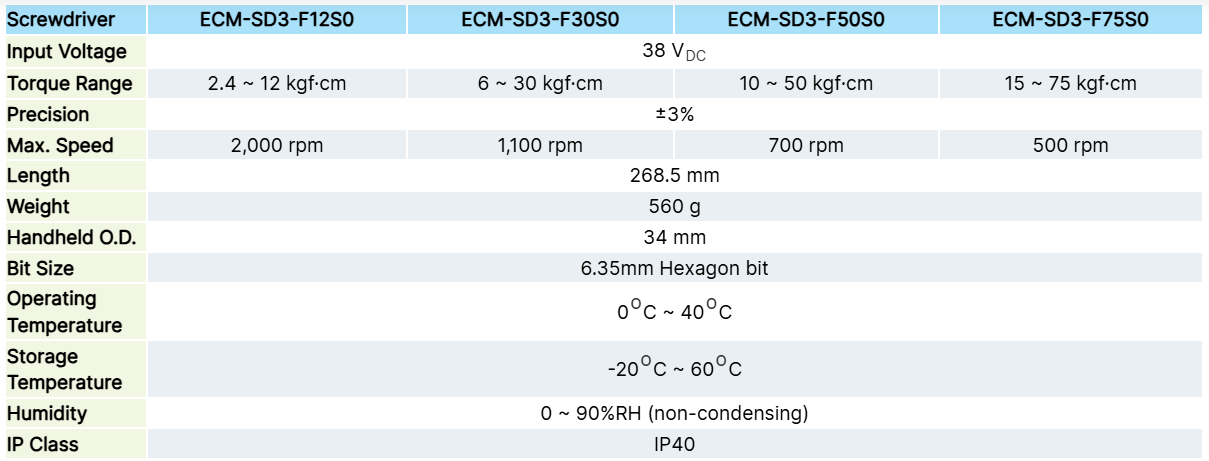

Transducerized Smart Screwdriver ECM-SD3

Torque sensor signals are directly fed to the full closed-loop control with a high-precision of ± 3% Low cogging torque of the DC servo motor Light indicator shows tightening status Easy mounting on robots or machines with a flange Applications Electronic product assembly Automotive electronics assembly
